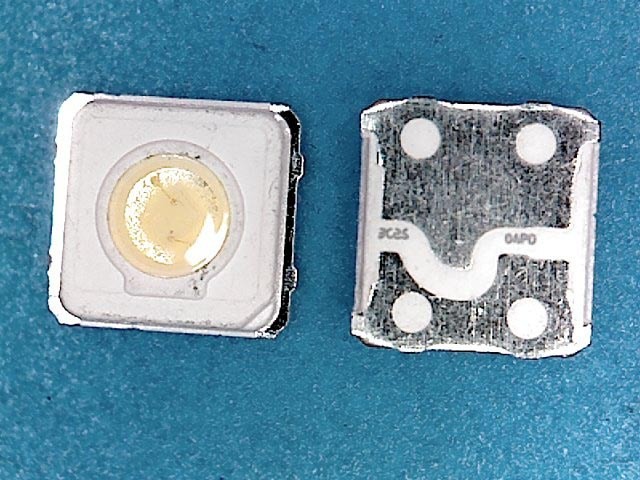

LED podsvícení dioda 3537 / 3535 1W 3V Samsung
Kód zboží:
4300016000
Značka:
Samsung
LED dioda 3537 / 3535 s výkonem 1W a napětím 3V, ideální pro podsvícení. Celý popis
16,00 Kč
bez DPH: 13,22 Kč
Skladem > 25 ks
Možnosti doručení
Skladem na prodejně
AME Hradec Králové
LED podsvícení dioda 3537 / 3535 1W 3V Samsung
Rozměry: 3,5 x 3,5 x 0,8 mm
MODEL NAME: SPBWH1332S1BVC1BIB
Manufacturer: SAMSUNG
Technické parametry:
Forward Current (IF): 350 mA
Pulse Forward Current (IFp): 500 mA
Reverse Current (IR): 25 mA
Reverse Voltage (VR): 5 V (5 mA)
Power Dissipation (PD): 1.25 W
Operating Temperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +85 °C
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C for 10 secs
Hand Soldering: 350 °C for 3 secs
Junction Temperature (Tj): 125 °C
Forward Voltage (VF): 3.0-3.6 V (350 mA)
Luminous Flux (LM): 100-110 lm (350 mA)
Luminous Intensity (IV): cd (350 mA)
Wavelength (nm): - nm mA
CIE: x=0.270 y=0.240 (350 mA)
Color Correlated Temperature (CCT):
CRI: °
Viewing angle: 120°
