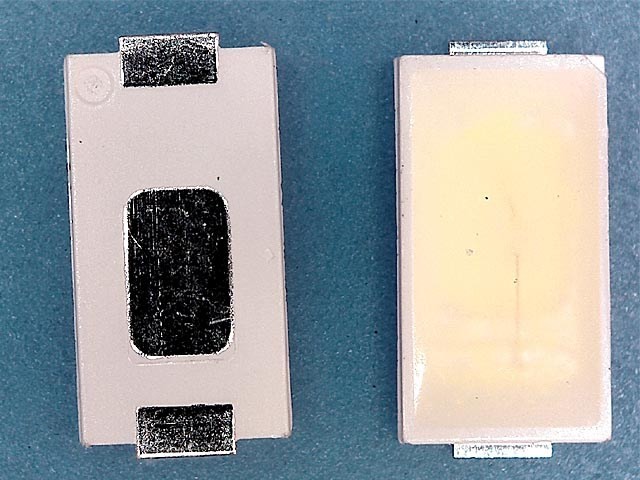

LED dioda 6030 6V 1W LG
Kód zboží:
4300030600
LED dioda 6030 6V 1W od LG s rozměry 6,0 x 3,0 x 0,8 mm. Celý popis
12,00 Kč
bez DPH: 9,92 Kč
Skladem > 25 ks
Možnosti doručení
Skladem na prodejně
AME Hradec Králové
LED dioda 6030 6V 1W LG
Rozměry: 6,0 x 3,0 x 0,8 mm
Technické parametry:
MODEL NAME: LATHT420MPLZB
Manufacturer: LG Innotek LED
Forward Current (IF): 140mA
Pulse Forward Current (IFp): 260mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.6-1.2V (5mA)
Power Dissipation (PD): 980mW
Operating Temperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10 secs
Hand Soldering: 350 °C for 3 secs
Junction Temperature (Tj): 110°C
Forward Voltage (VF): 5.8-7.0V (93mA)
Luminous Flux (LM): -lm (93mA)
Luminous Intensity (IV): 15-26cd (93mA)
Color Correlated Temperature (CCT): 8500-30000K
CRI: 80°
Viewing Angle: 120°
Lead Frame Type LED Package: 6.0×3.0×0.8 mm (L×W×H) d=6.0mm
Rozměry: 6,0 x 3,0 x 0,8 mm
Technické parametry:
MODEL NAME: LATHT420MPLZB
Manufacturer: LG Innotek LED
Forward Current (IF): 140mA
Pulse Forward Current (IFp): 260mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.6-1.2V (5mA)
Power Dissipation (PD): 980mW
Operating Temperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10 secs
Hand Soldering: 350 °C for 3 secs
Junction Temperature (Tj): 110°C
Forward Voltage (VF): 5.8-7.0V (93mA)
Luminous Flux (LM): -lm (93mA)
Luminous Intensity (IV): 15-26cd (93mA)
Color Correlated Temperature (CCT): 8500-30000K
CRI: 80°
Viewing Angle: 120°
Lead Frame Type LED Package: 6.0×3.0×0.8 mm (L×W×H) d=6.0mm
