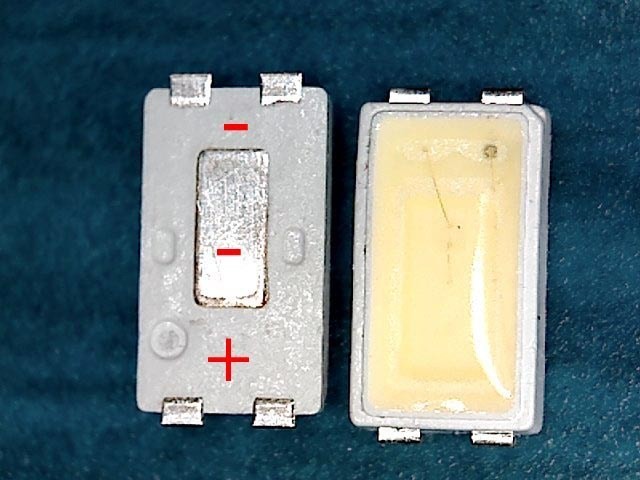

LED dioda 5630 0.5W 3V Samsung
Kód zboží:
4300015700
Značka:
Samsung
LED dioda 5630, 0.5W, 3V, rozměry 5.6 x 3.0 x 0.8 mm. Celý popis
21,00 Kč
bez DPH: 17,36 Kč
Skladem > 25 ks
Možnosti doručení
Skladem na prodejně
AME Hradec Králové
21,00 Kč
LED dioda 5630 0.5W 3V Samsung
Rozměry: 5,6 x 3,0 x 0,8 mm
Technické parametry:
MODEL NAME: SPBWH1532S1ZVCBIB
Výrobce: SAMSUNG
Forward Current (IF): 180 mA
Pulse Forward Current (IFp): 300 mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.7-1.2 V (5 mA)
Power Dissipation (PD): 0.5 W
Operating Temperature (Topr): -40 až +85 °C
Storage Temperature (Tstg): -40 až +120 °C
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C po dobu 10 s
Hand Soldering: 350 °C po dobu 3 s
Junction Temperature (Tj): °C
Forward Voltage (VF): 2.7-3.2 V (65 mA)
Luminous Flux (LM): 28.5-30.5 LM (65 mA)
Wavelength (nm): nm (65 mA)
Color of Emission:
Correlated Color Temperature (CCT): K
CRI: 80°
Viewing Angle: 120°
Rozměry: 5,6 x 3,0 x 0,8 mm
Technické parametry:
MODEL NAME: SPBWH1532S1ZVCBIB
Výrobce: SAMSUNG
Forward Current (IF): 180 mA
Pulse Forward Current (IFp): 300 mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.7-1.2 V (5 mA)
Power Dissipation (PD): 0.5 W
Operating Temperature (Topr): -40 až +85 °C
Storage Temperature (Tstg): -40 až +120 °C
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C po dobu 10 s
Hand Soldering: 350 °C po dobu 3 s
Junction Temperature (Tj): °C
Forward Voltage (VF): 2.7-3.2 V (65 mA)
Luminous Flux (LM): 28.5-30.5 LM (65 mA)
Wavelength (nm): nm (65 mA)
Color of Emission:
Correlated Color Temperature (CCT): K
CRI: 80°
Viewing Angle: 120°
