LED Dioda 3020 3V UNI MSL-2995W
Kód zboží:
4300031000
LED dioda 3020 s rozměry 3,0 x 2,0 x 1,3 mm a výkonem 0,12W. Celý popis
17,00 Kč
bez DPH: 14,05 Kč
Skladem > 25 ks
Možnosti doručení
Skladem na prodejně
AME Hradec Králové
17,00 Kč
LED Dioda 3020 3V UNI MSL-2995W
Rozměry: 3,0 x 2,0 x 1,3 mm | Výkon: 0,12W
Technické parametry:
MODEL NAME: MSL-299SW 3020 LED
Manufacturer: UNI
Forward Current (IF): 30mA
Pulse Forward Current (IFp): 100mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 120mW
Operating Temperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10 secs | Hand Soldering: 350 °C for 3 secs
Junction Temperature (Tj): 110°C
Forward Voltage (VF): 3.0-3.5V (20mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity (IV): 1800-2200mcd (20mA)
Color Correlated Temperature (CCT):
CRI: °
Viewing angle: 120°

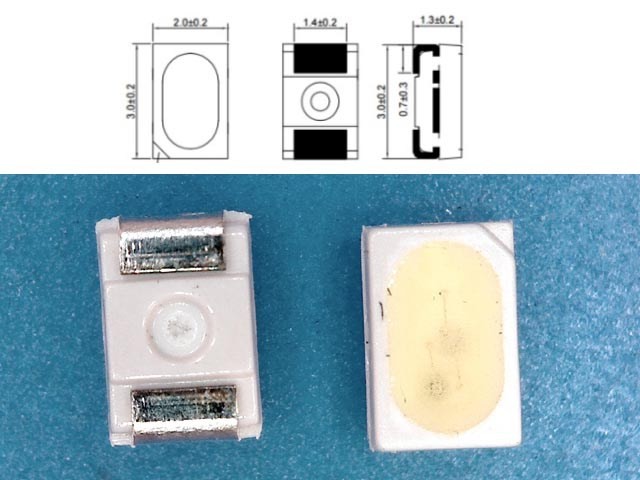

Lead Frame Type LED Package: 3.0×2.0×1.3 mm L×W×H d=mm
Rozměry: 3,0 x 2,0 x 1,3 mm | Výkon: 0,12W
Technické parametry:
MODEL NAME: MSL-299SW 3020 LED
Manufacturer: UNI
Forward Current (IF): 30mA
Pulse Forward Current (IFp): 100mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 120mW
Operating Temperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10 secs | Hand Soldering: 350 °C for 3 secs
Junction Temperature (Tj): 110°C
Forward Voltage (VF): 3.0-3.5V (20mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity (IV): 1800-2200mcd (20mA)
Color Correlated Temperature (CCT):
CRI: °
Viewing angle: 120°
Lead Frame Type LED Package: 3.0×2.0×1.3 mm L×W×H d=mm
