LED dioda 2323 3V Samsung
Kód zboží:
4300030900
0,5W, 80LM, 4000K - LED dioda pro podsvícení s vysokou účinností. Celý popis
22,00 Kč
bez DPH: 18,18 Kč
Skladem > 25 ks
Možnosti doručení
Skladem na prodejně
AME Hradec Králové
LED dioda 2323 3V Samsung
Parametry: 0,5W, 80LM, 4000K
Technické parametry:

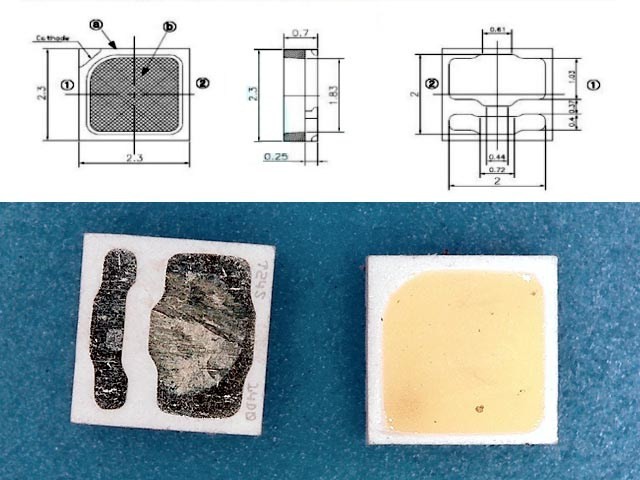

MODEL NAME: SPMWHT221MD5WAT0S0 2323 LED
Manufacturer: SAMSUNG
Forward Current (IF): 150mA
Pulse Forward Current (IFp): 300mA
Reverse Current (IR): 5mA
Reverse Voltage (VR): 0.7-1.2V (mA)
Power Dissipation (PD): W
Operating Temperature (Topr): -40 až +85°C
Storage Temperature (Tstg): -40 až +100°C
Soldering Temperature (Tsld): Reflow Soldering: 260°C for 10secs
Hand Soldering: 350°C for 3secs
Junction Temperature (Tj): 110°C
Forward Voltage (VF): 2.8-2.9V (65mA)
Luminous Flux (LM): 23.56-27.09 LM (65mA)
Luminous Intensity (IV): mcd (65mA)
Color Correlated Temperature (CCT): 4000 K
CRI: 80°
Viewing angle: 120°
